Product Details
- Parameter
- Introduction
| Volume [m³] | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 |
| Weight [KG] | 880 | 1600 | 1800 | 2300 | 2550 | 2935 | 2970 |
| Working Pressure [MPa] | 20-24 | 24-26 | 24-26 | 25-28 | 25-28 | 25-30 | 25-30 |
| Working Fow [L/min] | 40-60 | 120-150 | 150-180 | 180-200 | 180-200 | 180-200 | 180-200 |
| A [mm] | 1488 | 1850 | 2030 | 1885 | 1885 | 2155 | 2425 |
| B [mm] | 980 | 1076 | 1240 | 1600 | 1970 | 2000 | 1702 |
| C [mm] | 1646 | 2018 | 2176 | 2357 | 2357 | 2617 | 2995 |
| D [mm] | 2301 | 2975 | 3010 | 3330 | 3330 | 3445 | 3658 |
| E [mm] | 1826 | 2385 | 2356 | 2570 | 2570 | 2530 | 2655 |
A heavy-duty attachment for grasping, sorting, and loading mixed demolition debris (concrete, steel, wood). Its reinforced tines and powerful hydraulics provide superior material handling efficiency.

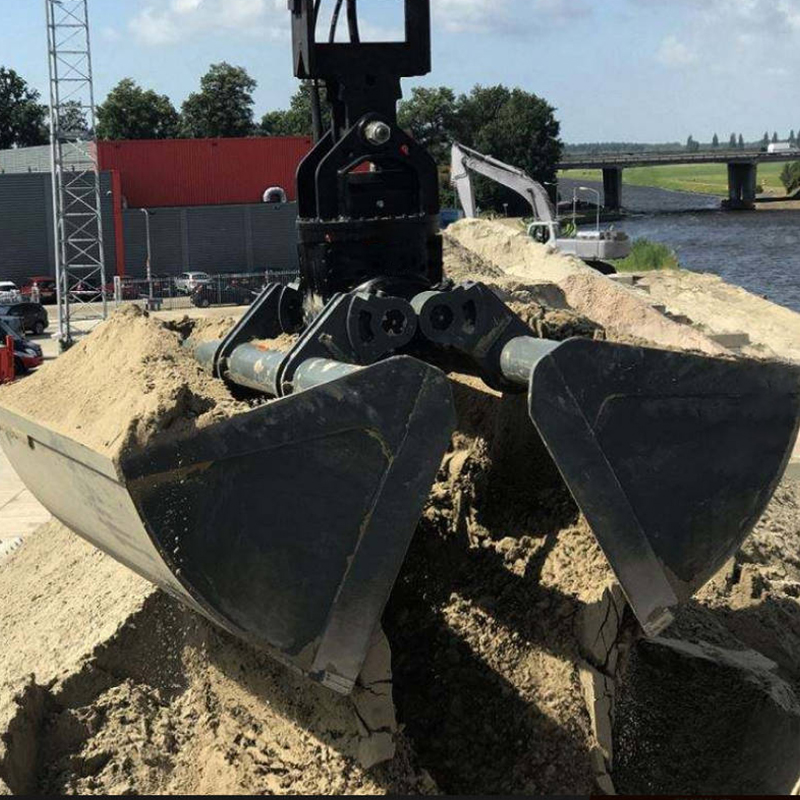

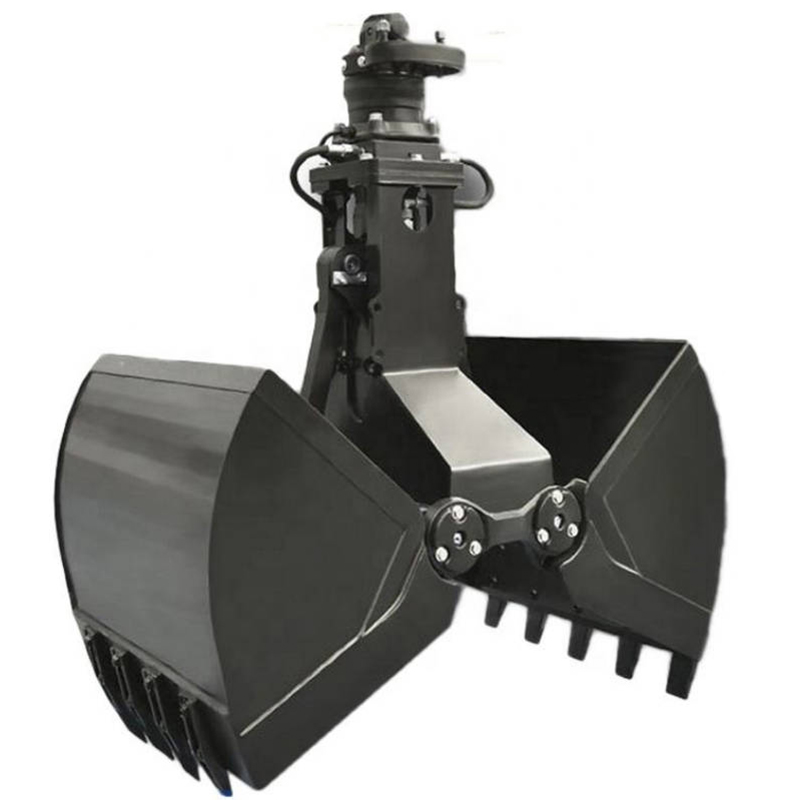

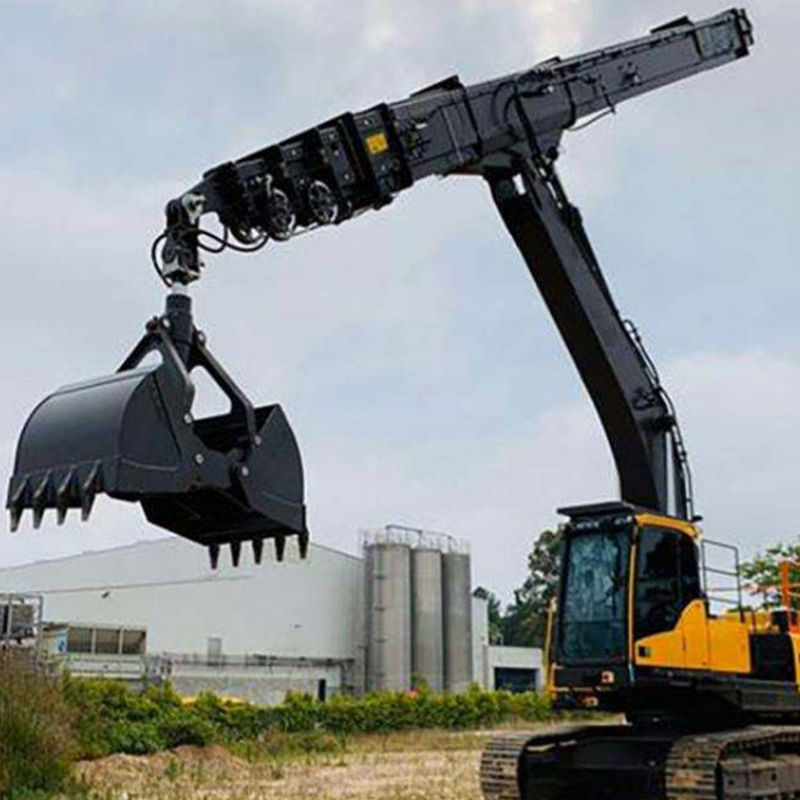

Clamshell bucket is the bucket that can open and close to grasp the sediment and allkinds of bulk cargo.It is a kind of spreader that mainly rely on the left and right two combined bucket or multiple jaw opening crawl and unloading materials.Applied to foundation ground digging,chasm digging,loose materials loading.
Features
■ Clamshell bucket are two types:360-degree rotating type and non-rotating type.
■ Material adopts high quality Q460 and NM360.
■ Driven by double cylinder synchronously.
■ Exquisite production technology,there is no gap and no leakage at the joint of the two buckets.
