Rock Grapple
Specially designed for handling large, irregular rocks and boulders. Its interlocking tines provide a secure grip for loading, sorting, and placing heavy rocks in land clearing, quarry, and landscaping projects.
Customer reviews：
Tel：+86-18305371238
Email: lina@cnznzb.com
- Parameter
- Introduction
| Model | MDGO3 | MDG06 | MDG08 | MDG15 | MDG20 | MDG30 |
| Excavator Weight [t] | 1-3 | 3-5 | 6-8 | 10-18 | 16-23 | 25-40 |
| Jaw Width [mm] | 300 | 450 | 550 | 845 | 940 | 1250 |
| Max Opening [mm] | 675 | 1007 | 1427 | 1880 | 2125 | 2255 |
| Rotational Flow [L/min] | 15-18 | 15-19 | 15-20 | 25-30 | 30-45 | 30-45 |
| Rotational Pressure [Mpa] | 10-12 | 12-14 | 12-14 | 10-12 | 12-14 | 12-14 |
| Working Flow [L/min] | 30-35 | 35-40 | 45-50 | 100-120 | 160-180 | 180-200 |
| Working Pressure [Mpal | 16-18 | 18-20 | 18-20 | 18-20 | 20-22 | 20-22 |
| Weight [kg] | 140 | 340 | 460 | 980 | 1780 | 2080 |
*Please call customer service to contact us for actual accessory parameters
Specially designed for handling large, irregular rocks and boulders. Its interlocking tines provide a secure grip for loading, sorting, and placing heavy rocks in land clearing, quarry, and landscaping projects.

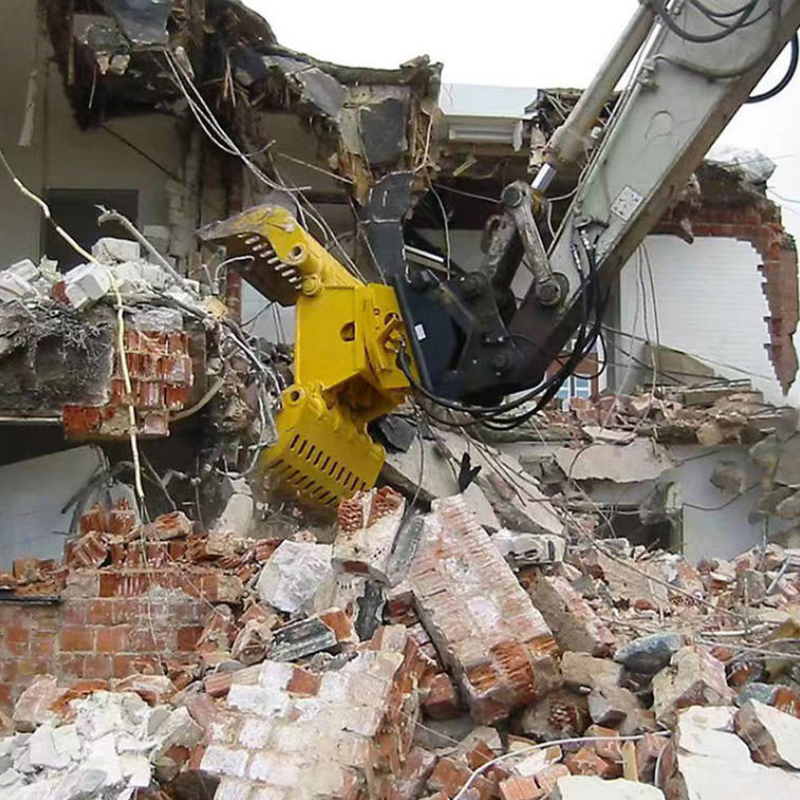

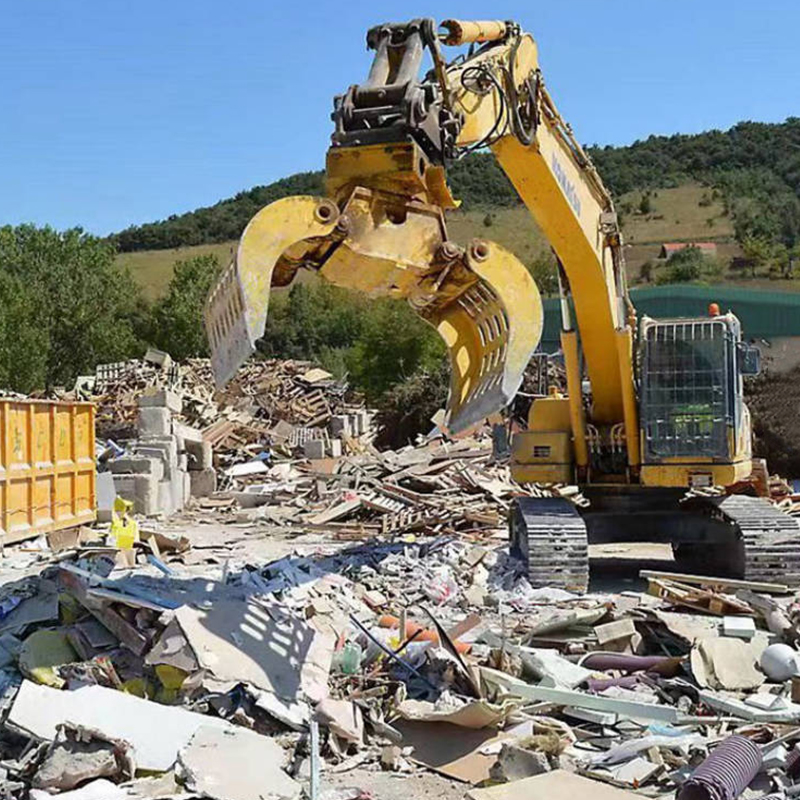

MONDE demolition grab is a multi-functiona gripper for sorting and handling work,such as picking logs, picking up brick and wood structures,large concrete blocks,large stone blocks,precast concrete panels,and demolition of steel structure workshops in demolition construction.And sorting,can also be used for grabbing and sorting of domestic waste.
Features

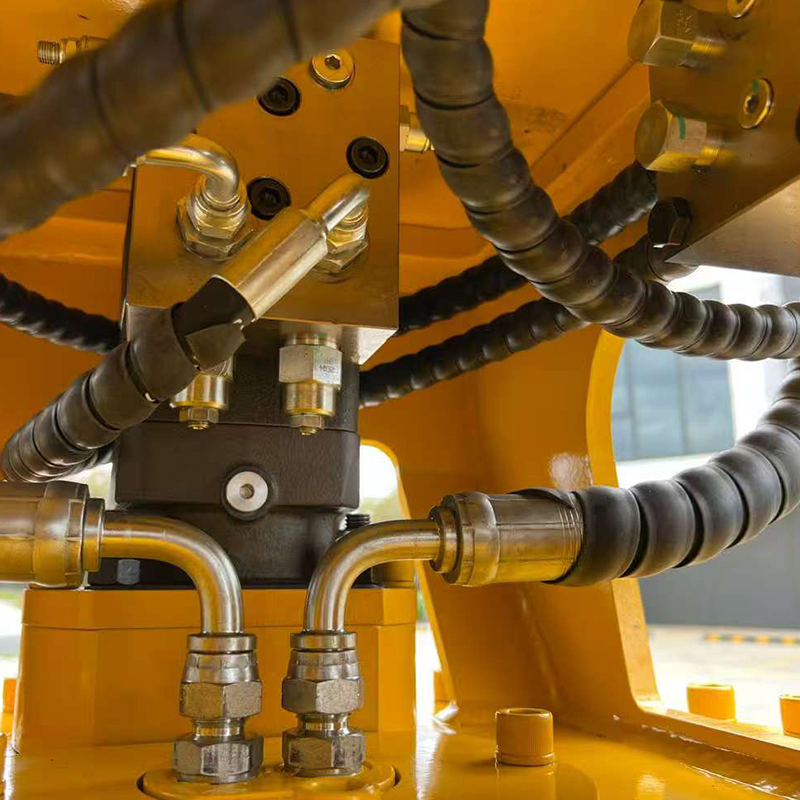

■ Continuous 360°rotation
■ Synchronized closing of the jaws
■ Hydraulic cylinders equipped with braking system
■ High gripping/clamping force
