Product Details

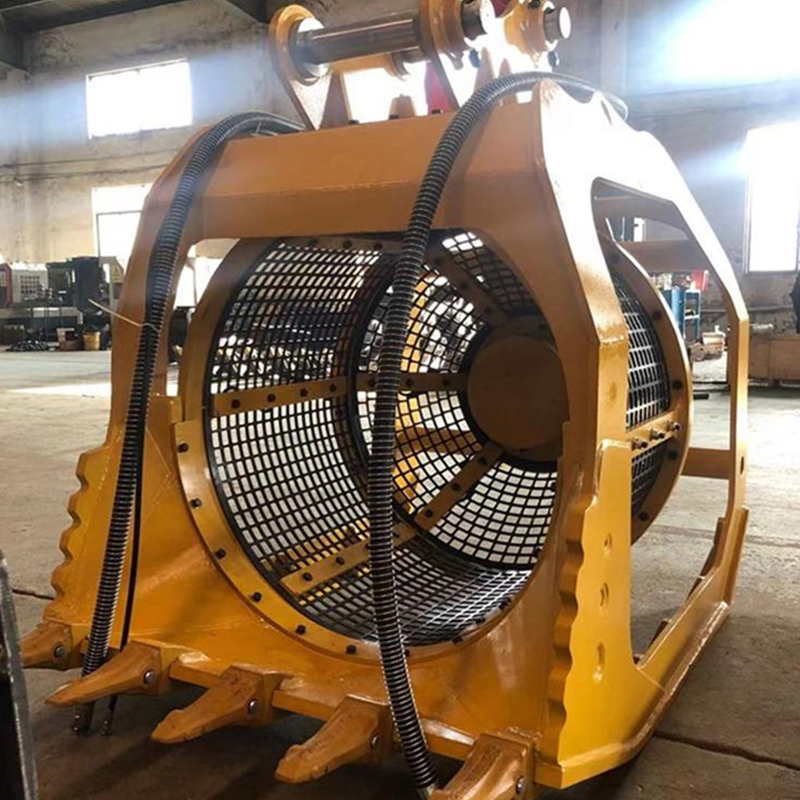

Screening Bucket
Equipped with a vibrating or rotary screening system to separate fine material (soil, sand) from coarse debris (stones, roots) directly on site. Dramatically reduces material handling costs and prepares material for immediate use.
Customer reviews:
Tel:+86-18305371238
Email: lina@cnznzb.com
- Parameter
- Introduction
| Model | MSB01 | MSB02 | MSB08 | MSB12 | MSB16 | MSB18 | MSB20 |
| Machine Class[t] | 1.2-2.5 | 2.5-5.5 | 6-8 | 10-18 | 19-28 | 29-38 | 40-50 |
| Rotary Screen Diameter[mm] | 500 | 592 | 700 | 1005 | 1420 | 1470 | 1700 |
| Rotating Speed[r/min] | 30-35 | 30-35 | 35-40 | 30-35 | 30-35 | 35-45 | 35-45 |
| Working Pressure[mpa] | 10-12 | 10-12 | 12-15 | 18-21 | 18-22 | 20-23 | 20-23 |
| oil Flow[L/min] | 18-20 | 18-20 | 40-45 | 90-100 | 90-100 | 90-100 | 100-150 |
| Weight[kg] | 150 | 260 | 515 | 965 | 1700 | 2800 | 4080 |
*Please call customer service to contact us for actual accessory parameters
Equipped with a vibrating or rotary screening system to separate fine material (soil, sand) from coarse debris (stones, roots) directly on site. Dramatically reduces material handling costs and prepares material for immediate use.
