Product Details

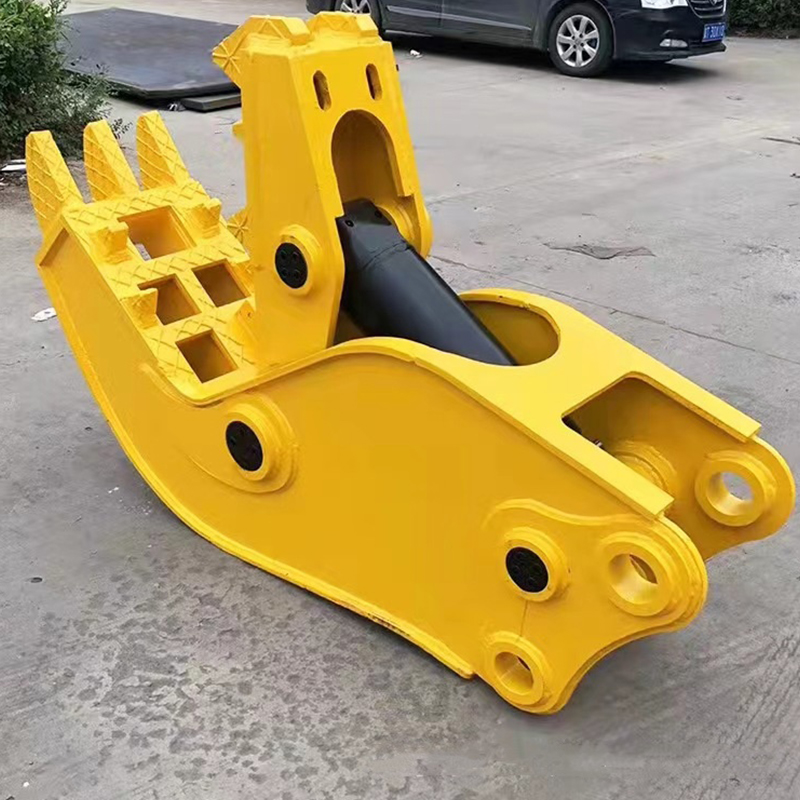

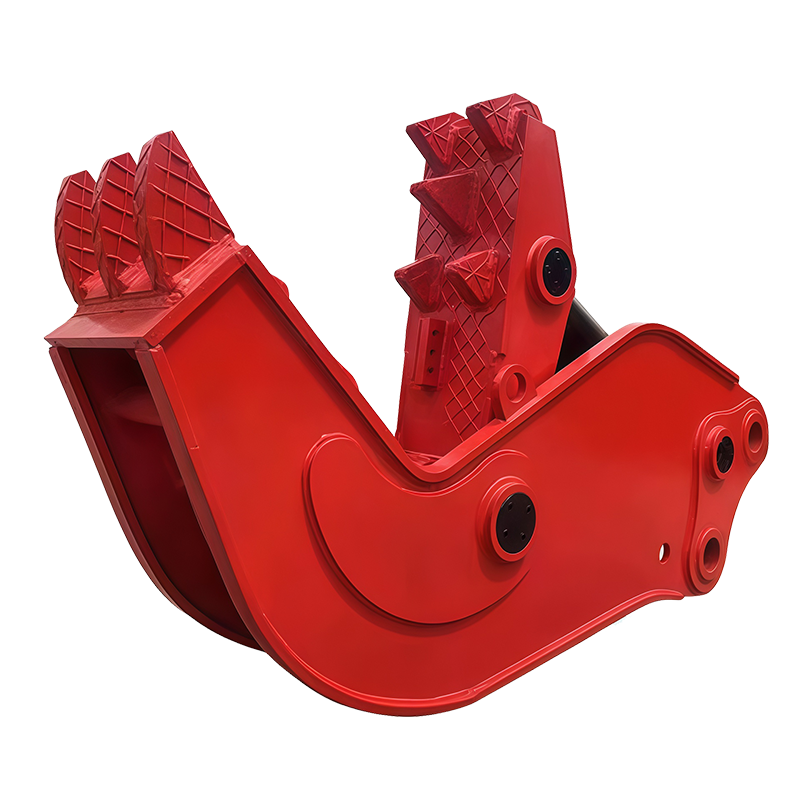

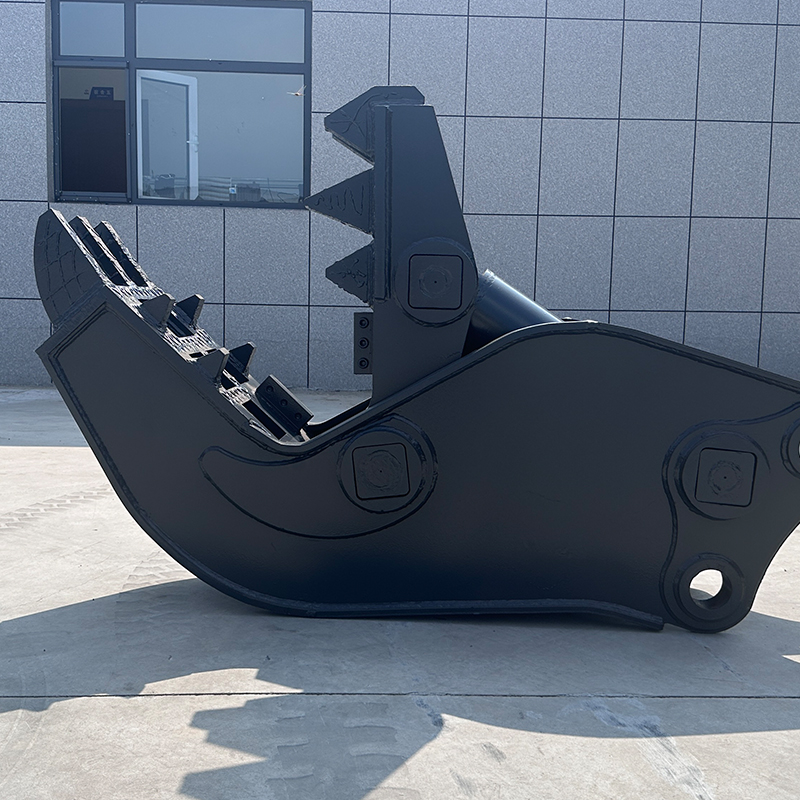

Concrete Crusher

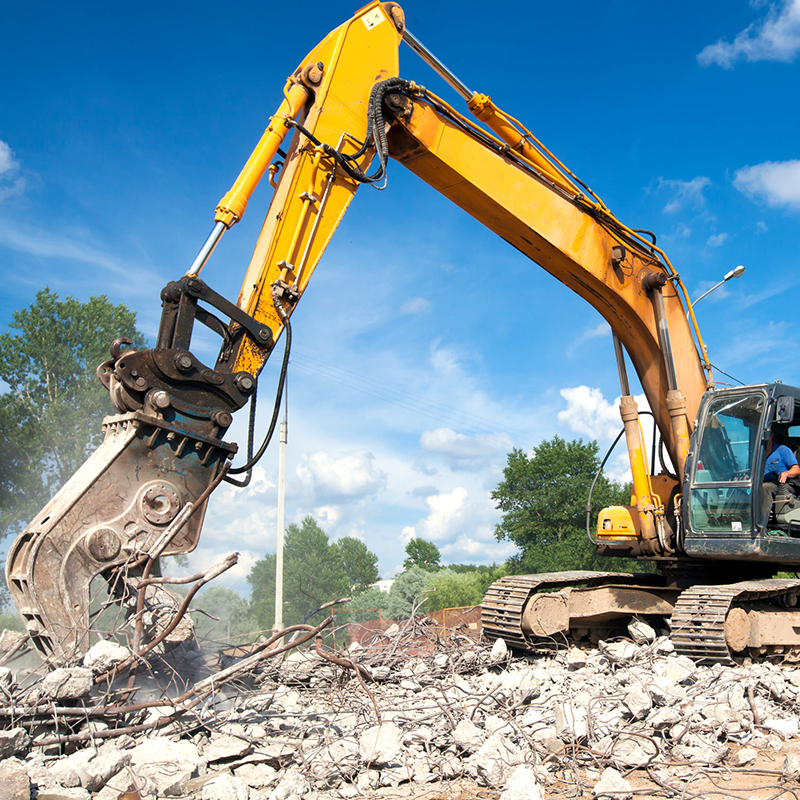

Used to crush and pulverize concrete into manageable fragments while separating rebar. Ideal for secondary demolition and on-site material reduction.
Customer reviews：
Tel：+86-18305371238
Email: lina@cnznzb.com
- Parameter
- Introduction
| Model | MSH06 | MSH15 | MSH20 | MSH30 | MSH40 |
| Excavator Weight[T] | 6-8 | 12-18 | 20-30 | 30-40 | 40-55 |
| Max.Crushing Force[T] | 83 | 110 | 150 | 180 | 300 |
| Max.Shear Force[T] | 126 | 190 | 230 | 320 | 340 |
| Work Pressure[Mpa] | 25-30 | 28 | 30 | 32 | 32 |
| Working Flow[L/min] | 60-100 | 100-130 | 180-230 | 180-230 | 300-320 |
| Rotation Pressure[Mpa] | 12-14 | 12-14 | 12-14 | 12-14 | 12-14 |
| Rotation Flow[L/min] | 15-20 | 20-25 | 25-30 | 30-35 | 30-45 |
| Weight [kg] | 650 | 1350 | 2250 | 3000 | 3700 |
*Please call customer service to contact us for actual accessory parameters
Used to crush and pulverize concrete into manageable fragments while separating rebar. Ideal for secondary demolition and on-site material reduction.
Add a 360°slewing support rotation system to improve

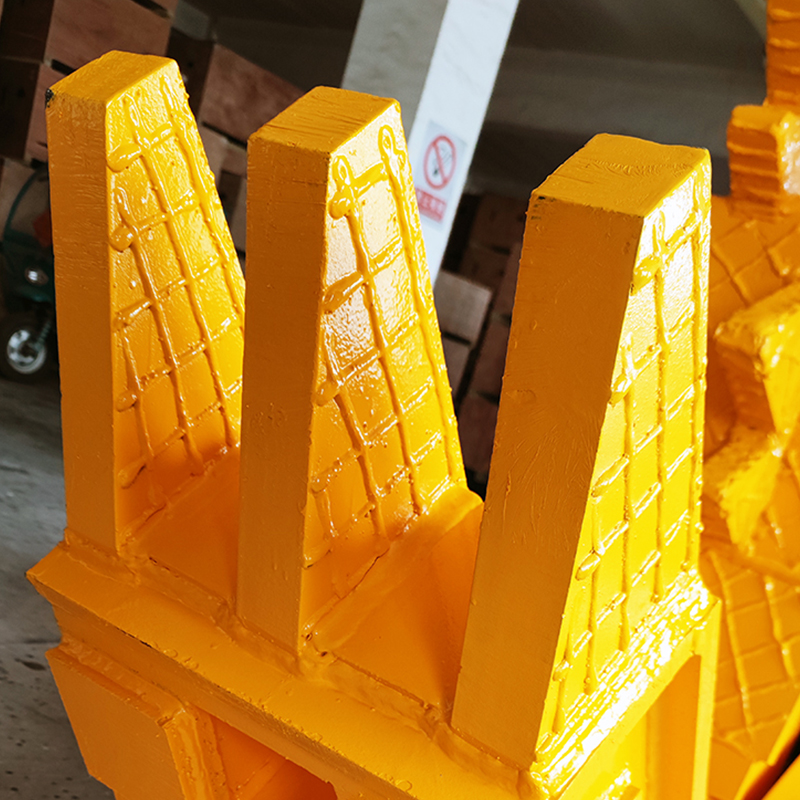

maneuverabiity and accuracy.Replaceable bucket teeth,replace single teeth or all bucket teeth as needed.Easy to replace.
